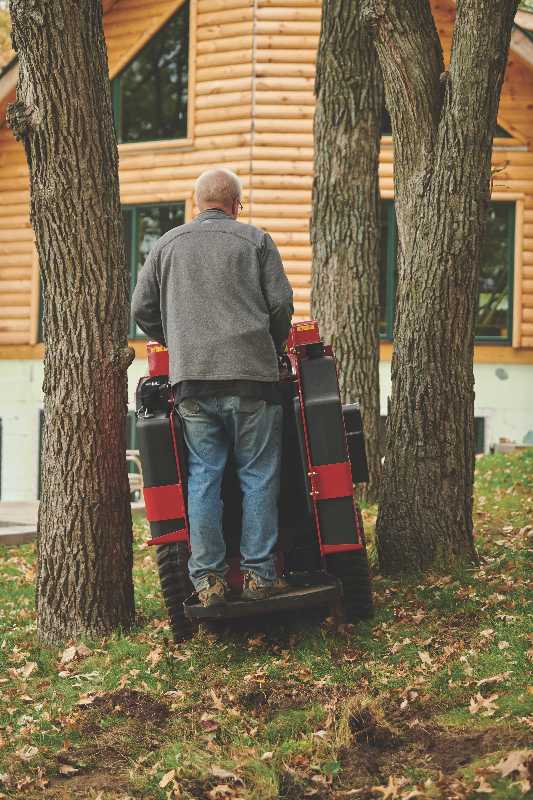

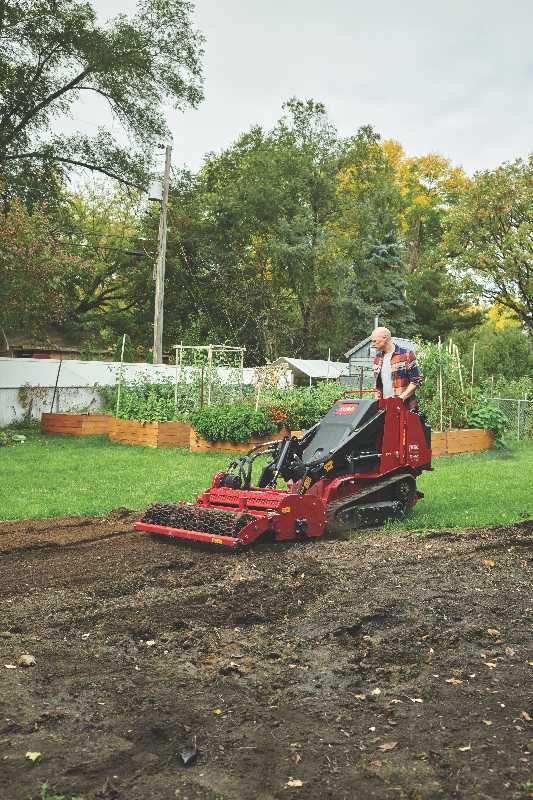

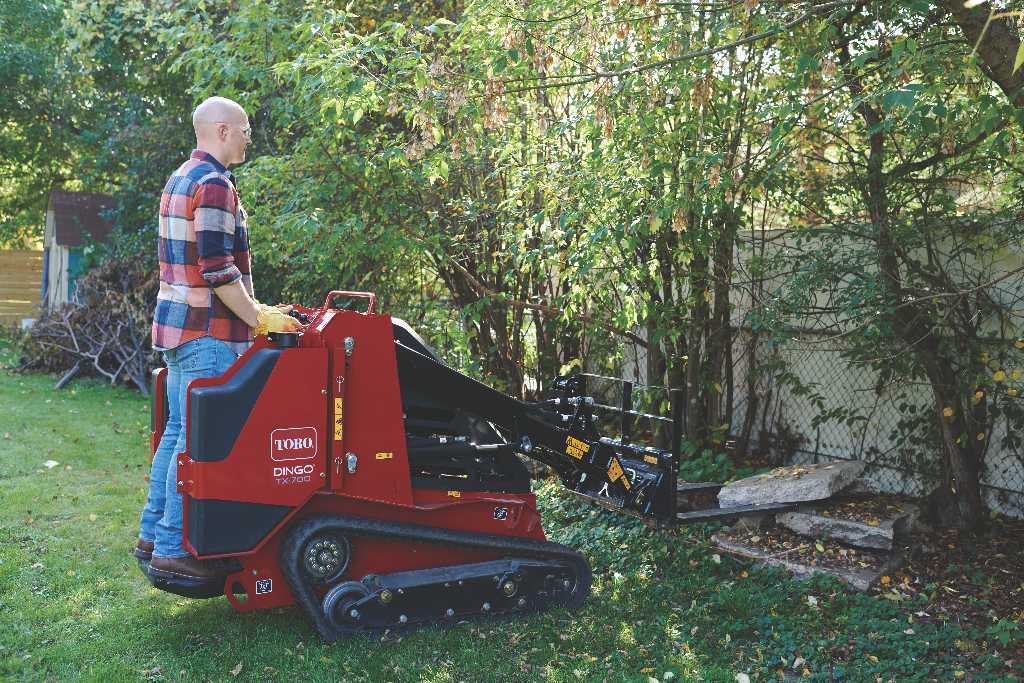

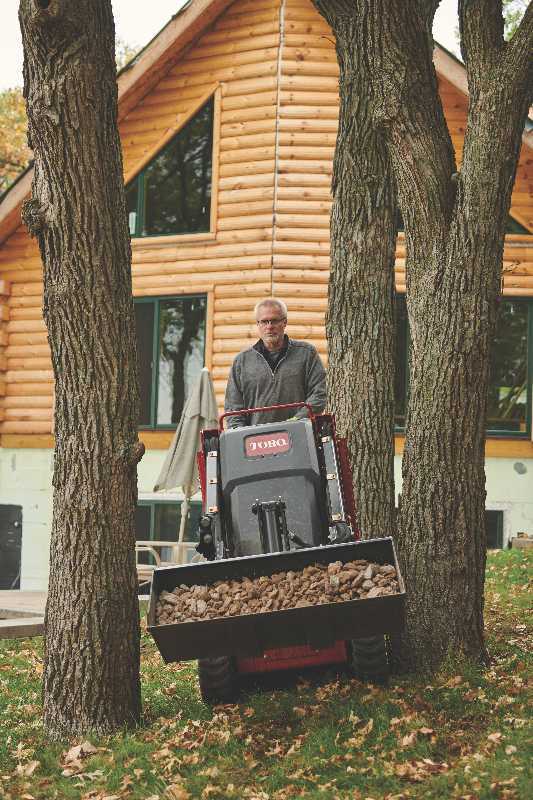

The Toro Dingo TX 700 Wide Track is a Diesel, tracked, compact loader. Ideal for construction, contractor, farms, forestry or small holdings.

Technical Specifications

Air Filter: Remote single element
Dump Angle: 42 degrees
Dump Height (cm): 134.4
Dump Height (inches): 52.9
Engine Make: Yanmar
Engine Model: 3TNV80F
Fuel Tank (gallons): 5.5
Fuel Tank (litres): 20.8
Fuel Type: Diesel
Ground Clearance (cm): 13.3
Ground Clearance (inches): 5.25
Ground Pressure: 0,89 bar (13 psi)
Ground Speed Forward (mph): 4.5
Ground Speed Forward (km/h): 7.2
Ground Speed Reverse (km/h): 7.2
Ground Speed Reverse (mph): 4.5
Hinge Pin Height (cm): 186.7
Hinge Pin Height (inches): 73.5
Hydraulic Flow: 54.9 l/min (each pump)
Hydraulic Flow Auxiliary: 51.9 l/min
Hydraulic Pressure: 207 bar
Loader Arms: Radial
Manufacturer’s Gross HP Rating (HP): 24.7
Manufacturer’s Gross HP Rating (kW): 18
Max Operating Height (cm): 246.4
Max Operating Height (inches): 97
Oil Capacity (litres): 3.4
Oil Capacity (quarts): 3.6
Overall Height (cm): 140.5
Overall Height (inches): 55.3
Overall Length w/bucket (cm): 261.1
Overall Length w/bucket (inches): 102.8
Overall Length w/o bucket (cm): 208.3
Overall Length w/o bucket (inches): 82
Overall Width (cm): 86.9
Overall Width (inches): 34.2
Rated Operating Capacity – 35% of Tip Capacity (kg): 346
Rated Operating Capacity – 35% of Tip Capacity (lbs): 764
Reach – Fully Raised (cm): 78.7
Reach – Fully Raised (inches): 31
Reservoir Capacity (gallons): 10
Reservoir Capacity (litres): 37.9
RPM: 3000
Tip Capacity (kg): 989
Tip Capacity (lbs): 2182
Track Length (inches): 126.6
Track Length(cm): 321.6
Track Width (cm): 13.7
Track Width (inches): 5.4
Tracks: Camso B-Tread
Traction: Dual hydrostatic pump
Weight (kg): 1140
Weight (lbs): 2514
Wheelbase (inches): 39

Attachment not included with machine. Attachments sold separately.
If you are interested in a price or demonstration of this machine please call 01527 68295 or email steven@cuttingedge-machinery.co.uk
